Name: OC-F08 Split Type Diffusion Sampling CNG Fixed Gas Detector With Gas Alarming Monitoring System OC-F08
Brand: OC-F08 Split Type Diffusion Sampling CNG Fixed Gas Detector With Gas Alarming Monitoring System OC-F08
SKU: OC-F08
Price: 1 USD
Availability: InStock
Rating: 4.9 (125 reviews)

Характеристики Галерея Характер продукции Спросите цитату

Характеристики

Warranty: 12 months

Type: Fixed gas detector

Customized support: OEM

Model Number: OC-F08

Produce name: Split type Fixed gas detector

Detecting Gas: CNG

Precision: â‰¤Â±3%F.S

Repeatability: â‰¤Â±1%

Zero drift: â‰¤Â±1%(F.S/year)

Alarming mode: Audible-visual alarm(Optional)

Working Voltage: 24V DC(16~30VDC)

Installation Means: Wall mounted, Pipe type (Thread:M40*1.5 )

Sensor type: Electrochemistry Sensor

Explosion-proof Index: Ex d IIC T6

Основная информация

Model Number: OC-F08

Оплата и доставка Условия

Packaging Details: Packed according to the client's requirements.

Supply Ability: 3000 Piece/Pieces per Month Urgent orders can provide overtime production.

Характер продукции

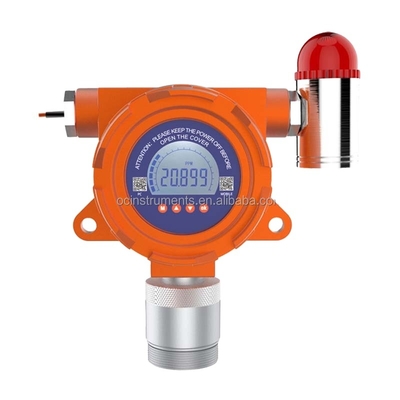

OC-F08 Split type Fixed gas detector

Description:

OC-F08 series Split type fixed gas detector, the shell and sensor is connected by the cable, the normal length is 60~80cm, but can be customized for special applications. The split type gas detector can be used to detect the closed space gas concentration, the sensor part can be placed in the inner closed space, the shell installed out of the closed area and displaying the gas concentration data.

The separate type fixed gas detector also used the original imported sensor and the ultra low power 32 bit microprocessor, so with the advantages of high precision, good repeatability, stable signal, respond quickly, etc. Possible connected with many controller system, such as PLC, DCS, computer and other, with the function of remote monitor and alarm, data logger and analysis.

Features:

4-20mA standard analog signal and RS485 digital signal output, 200~1000HZsignal output, relay output, data restore, data logger(optional);

LED screen displaying the gas concentration, gas type, unit, instrument status etc.

Independent air chamber, the sensor is not required to replace the sensor calibration, automatic identification of key parameters of the sensor;

Protection function to prevent high gas concentration attack;

Display the gas concentration in ppm, %LEL, %vol and mg/m3 is selectable;

Infrared remote controller operation;

With the 16bit ADC acquisition chip, designed with four-layer circuit board, so with high anti-interference ability;

With the Ex-proof certificate, the Ex-proof grade is Exd II CT6.

fixed HCN gas detection

Detection Gas	CNG
Detecting Range	0-2000ppm,5000ppm,10000ppm,50000ppm 5%Vol,10%Vol,20%Vol,50%Vol,100%Vol or customized
Resolution	0-100ppm
Sampling	Diffusion or pump-suction, circulation selectable
Precision	≤±3%F.S fixed HCN gas transmitter
Repeatability	≤±1% HCN gas detection
Zero drift	≤±1%(F.S/year)
Sensor Type	Electrochemical sensor
Sensor Life	2~3 years
Response Time (T90)	≤20s
Alarming mode	Audible-visual alarm(Optional)
Operating Environment	Temperature: -30℃~60℃ (Customized for special demands)
	Humidity: ≤95%RH (non-condensing); if >90%RH, can add the filter
	Pressure: 86kPa~106kPa
Working Voltage	24V DC(16~30VDC)
Output Signals	(Standard)Three-wire system 4~20mA standard signals output, available for PLC, DCS, etc;
	(Optional) Four-wire system RS485 digital signal output;
	(Optional) Frequency signal 200~1000Hz output;
	Two-level relay output:220VAC 0.5A, 5VDC 0.5A
Installation Means	Wall mounted, Pipe type (Thread:M40*1.5 )
Material of Body	Cast aluminum
Explosion-proof Index	Ex d IIC T6
Protection Grade	IP66
Electrical Interface	3/4″NPT(Female Screw),1/2″NPT(Female Screw)
Transmit Distance	≤2000m (If more than 2000m, can add the repeater.)
Dimension	210 mm×140 mm×92 mm(L×W×H)
Weight	About 1.5Kg
Standards	GB15322.1-2003,GB3836.1-2010,GB3836.2-2010,GB3836.4-2010
Warranty	12months
Certificate	CNEx, CE, RoHS

Henan Oceanus Import & Export Co., Ltd.

Henan Oceanus Import & Export Co., Ltd. has been engaged in the marketing of the Gas detection system since the establishment. Our company own the R&D force and an excellent marketing team, also the strict quality testing standards. Gas detection system is our main products, including of the Portable gas detector, Fixed gas detector, Gas detection controller, we can provide the good quality and after-sell for agents in different countries, for the end users we can provide the whole solutions for different applications. With the development of our company, our engineer research the new products, Air quality monitor system, particle counter, hardness tester and other instruments. All of the products are widely applied to different industrial fields. With the advantage of technology, products, price, pre-sale and after-sale service, we believe we can successful set up favorable and close relationships with the partners in various fields, including petroleum, chemical, gas industry, electric power, environmental protection and energy saving, steel industry, metallurgy, water treatment, pharmaceuticals industry medical industry and food service industry. fixed explosion-proof HCN gas leak monitor, HCN gas alarm, HCN gas meter

Q: Is there an OEM service?

A: As the trusted and professional supplier, we accept the sample order, even for one piece. Also provide the OEM service, sample order is OK.

Q: Which payment methods are supported?

A: Usually we support the TT, Western Union, Paypal.

Q: Do you support after sales service?

A: Most products we provide warranty of 12months, some with the longer warranty of 24months.
